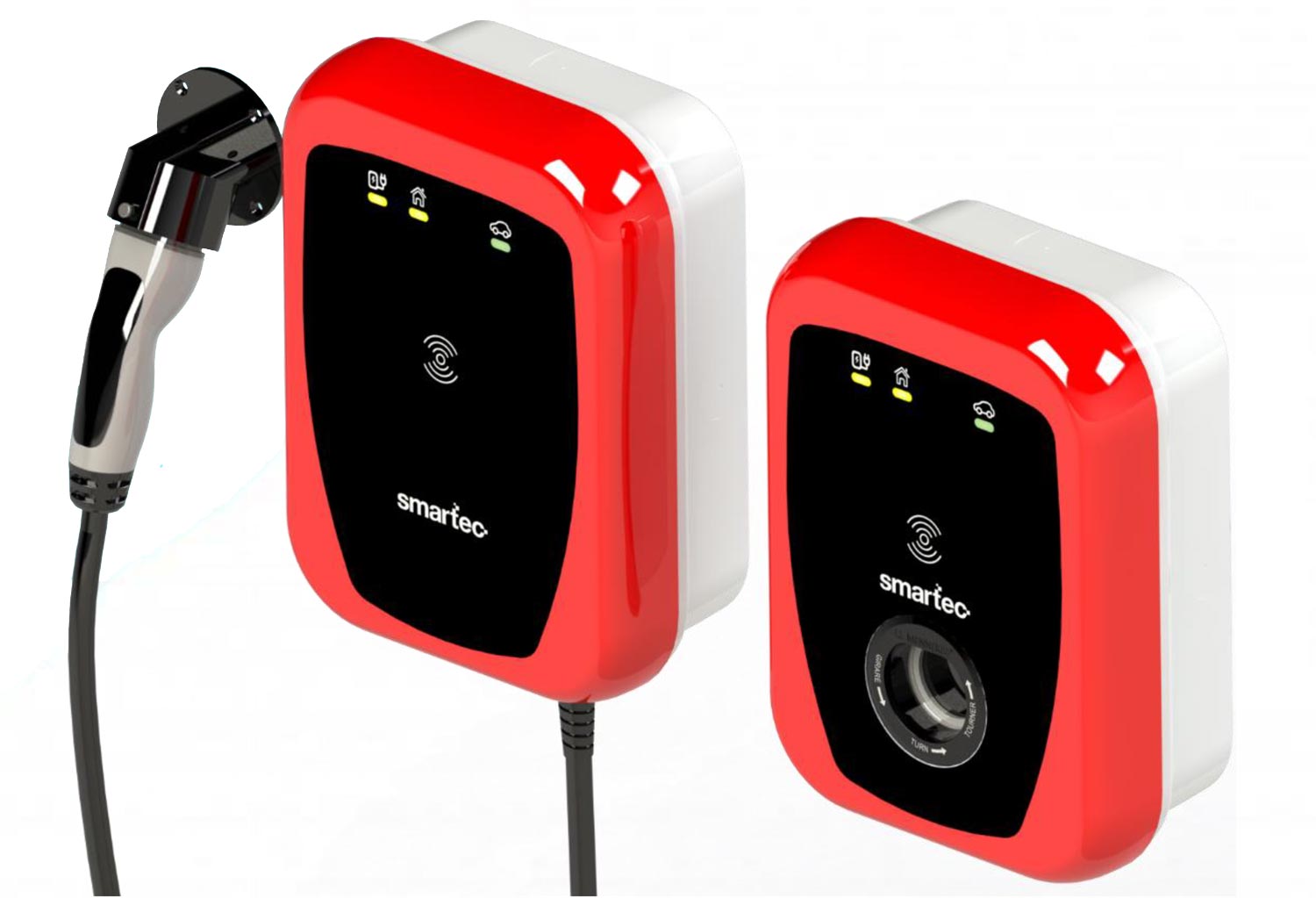

Wallbox - Anthea's Series
Charging wallboxes for electric cars that comply with MODE 3 of the international IEC/EN 61851-1 standard.They are made of a robust technopolymer plastic housing that is highly resistant to UV rays and are suitable for outdoor installation.To ensure the highest level of safety, the built-in Type 2 socket is equipped with Safety Child Shutter in accordance with IEC/EN 62196-2.
They represent the right mix of reliability, design and economy, allowing for absolutely safe recharging.
To enable significant cost savings during installation, each outlet is equipped with internal RCD differential protection.There is no need for the expensive type B differential protection on the power line.
High degree of protection against dust and water.
Their small size and simplicity make them technological and attractive products. It is possible to request customizations on graphics and colors.
Power Management function for intelligent management of electrical loads is integrated on all models.
Connectivity-ready versions can be fully controlled remotely with management platforms for monitoring services, computation, expense allocation, billing, etc. Very suitable for condominium administrators, managers of electric car charging parks, etc.
The products are fully developed and manufactured in Italy.
| Dati tecnici | |
|---|---|
| Descrizione poli | 3P+N+PE, P+N+PE (dipende dal modello) |
| Modalita’ di montaggio | Fissaggio a muro |
| Rated supply voltage | 380...415 V AC 50/60 Hz |
| Sistema di messa a terra | TT – TN |
| Numero di connettori d’uscita | 1 (WBA….-1-..-…-…, vedere la tabella di nomenclatura) 2 (WBA….-2-..-…-…, vedere la tabella di nomenclatura |
| Tipo di connettori | Tipo 2 secondo EN 62196 |
| Grado di protezione connettori | IPXXD (protezione con Shutter per tutte le versioni con presa integrata) |
| Sblocco estrazione prese | Attivo in caso di Black-Out o di disconnessione della rete di alimentazione |
| Massima corrente erogabile | 16A…32A (dipende dal modello) |
| Potenze erogabili | 3,7 kW, 7,4 kW, 11kW, 22 kW (dipende dal modello) |
| Protezione RCD 6 mA DC | Ogni connettore è individualmente protetto mediante RCD per il rilevamento della dispersione in corrente continua superiore ai 6 mA |
| Gestione dell’energia | Funzione di Power Management integrata (Energy Meter da ordinare a parte) |
| Selezione potenza di ricarica | Selezione della potenza di ricarica tramite contatto esterno |
| Corrente di cortocircuito | 6 kA |
| Visualizzazione locale | LED di stato RGB |
| [...] | |
| For full details, see the data sheet | |
| Download the data sheet | |
